Samsung VM55B-U — 55" Ultra-Narrow Bezel Video Wall Display (LH55VMBUBGBXGO)
$2,049.00
MPN · LH55VMBUBGBXGO
Samsung VM55B-U — 55" Ultra-Narrow Bezel Video Wall Display
The Samsung VM55B-U is a 55-inch Full HD video wall panel from the VMB-U Series, built for always-on, multi-panel installations. A 3.5 mm bezel-to-bezel width (2.25 mm top/left, 1.25 mm right/bottom), 500 nit brightness, an IPS panel with 178° viewing angles, 24/7 operation and DisplayPort 1.2 loop-out make it the tile of choice for lobbies, control rooms, retail flagships and transit environments.
Video wall pricing:
$2,049 per panel. Multi-panel orders (2×2, 3×3 and larger) are quoted within 1 business day — request a quote. Panels ship from Samsung distribution within 5–7 business days to the contiguous US.
$2,049 per panel. Multi-panel orders (2×2, 3×3 and larger) are quoted within 1 business day — request a quote. Panels ship from Samsung distribution within 5–7 business days to the contiguous US.
Key Features

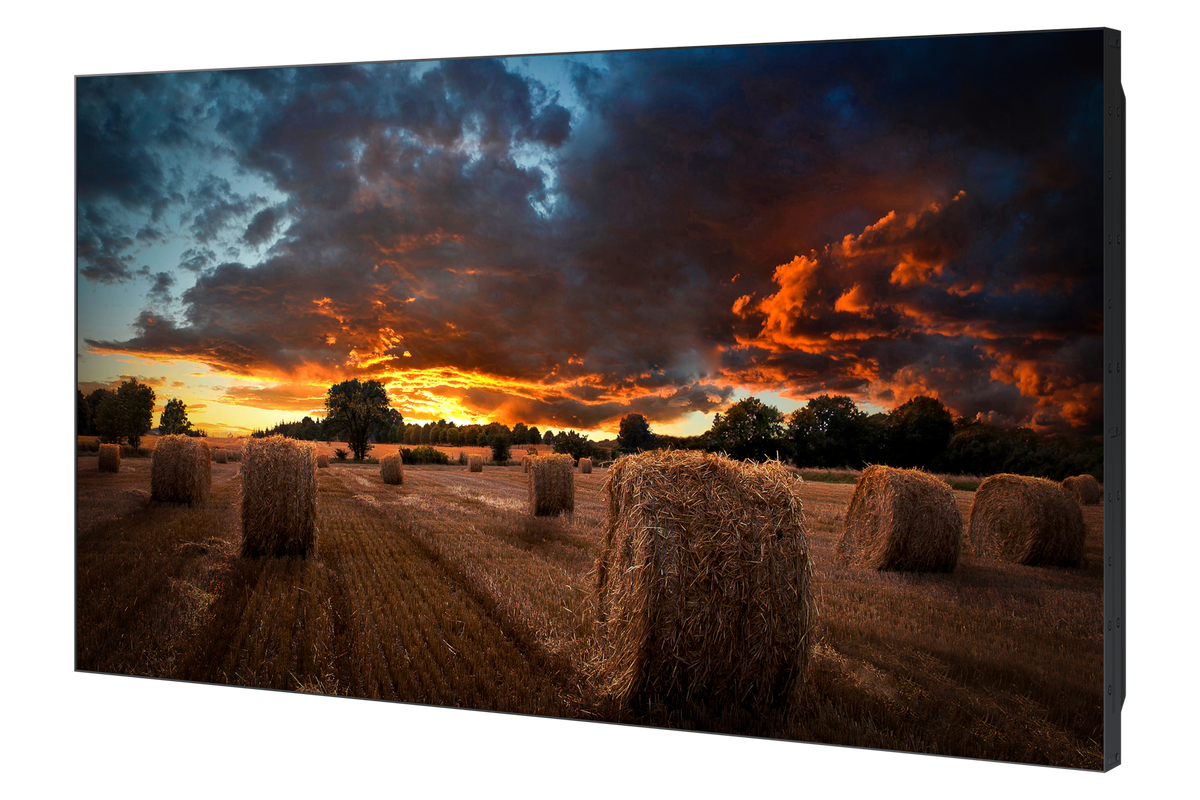

- 3.5 mm Bezel-to-Bezel: 2.25 mm (top/left) + 1.25 mm (right/bottom) bezels keep the seam between tiles to 3.5 mm across any matrix
- 500 nit Brightness, Non-Glare IPS Panel: 178°/178° viewing angle with 25% haze for even light across the wall
- 24/7 Continuous Operation: Rated for round-the-clock commercial duty
- Full HD 1920 × 1080 per Panel: Accepts up to 3840 × 2160 @ 60 Hz on HDMI and DisplayPort, so a 2×2 wall shows native 4K content
- DisplayPort 1.2 Loop-Out: Daisy-chain panels with the included DP cable instead of running a cable to each tile
- Color Expert Pro Calibration: Samsung's free Color Expert Pro software (PC and mobile) matches white balance and color across tiles
- IP5x Dust Resistance: Sealed against dust ingress for long service in public spaces
- Landscape & Portrait: Either orientation on a standard 600 × 400 VESA interface
Specifications
| Display | |
|---|---|
| Screen Size | 55" class (54.6" / 138.7 cm diagonal), display area 1,209.6 × 680.4 mm |
| Resolution | 1920 × 1080 @ 60 Hz (Full HD); max input 3840 × 2160 @ 60 Hz (HDMI 1/2, DP) |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1 (typ.) / 45,000:1 (dynamic) |
| Bezel Width | 2.25 mm (top/left), 1.25 mm (right/bottom) — 3.5 mm bezel-to-bezel |
| Panel Technology | IPS, LED-backlit, non-glare (25% haze), 72% color gamut, 0.63 mm pixel pitch |
| Viewing Angle | 178° / 178° (H/V) |
| Response Time | 8 ms (G to G) |
| Operation Hours | 24/7 |
| Orientation | Landscape / Portrait |
| Dust Resistance | IP5x |
| Connectivity | |
|---|---|

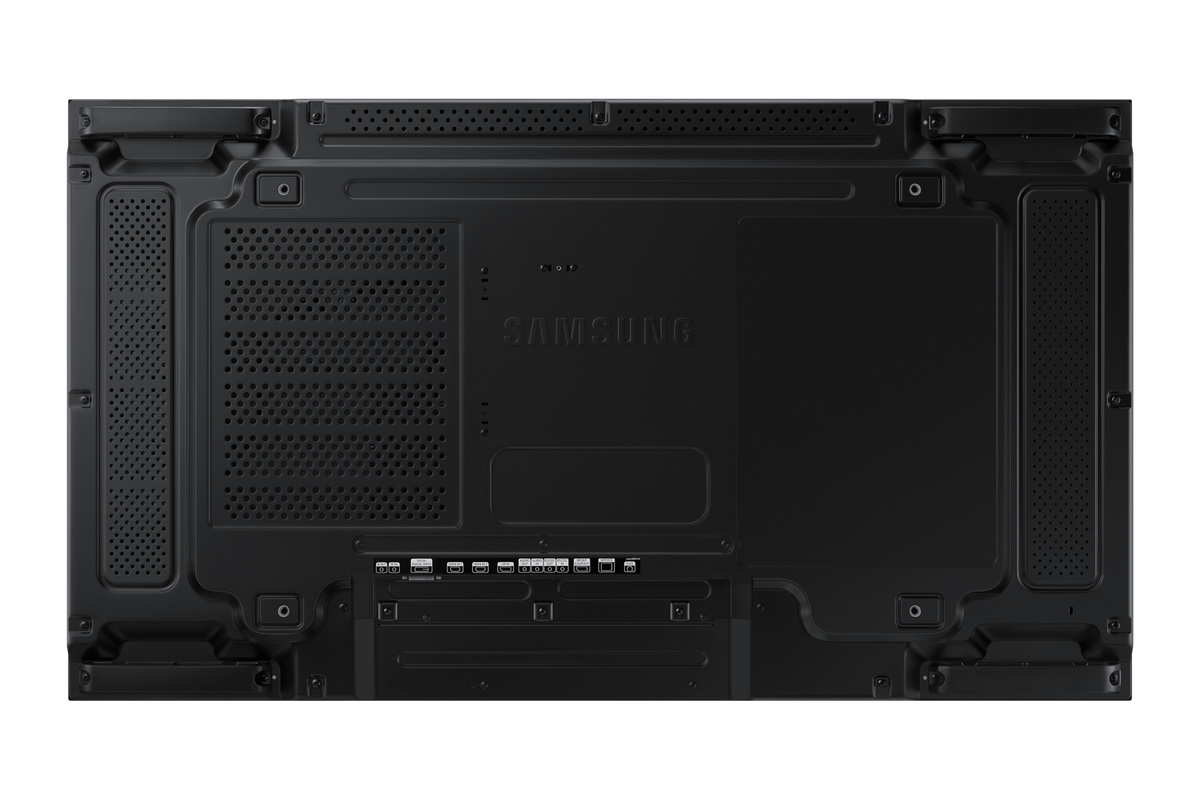

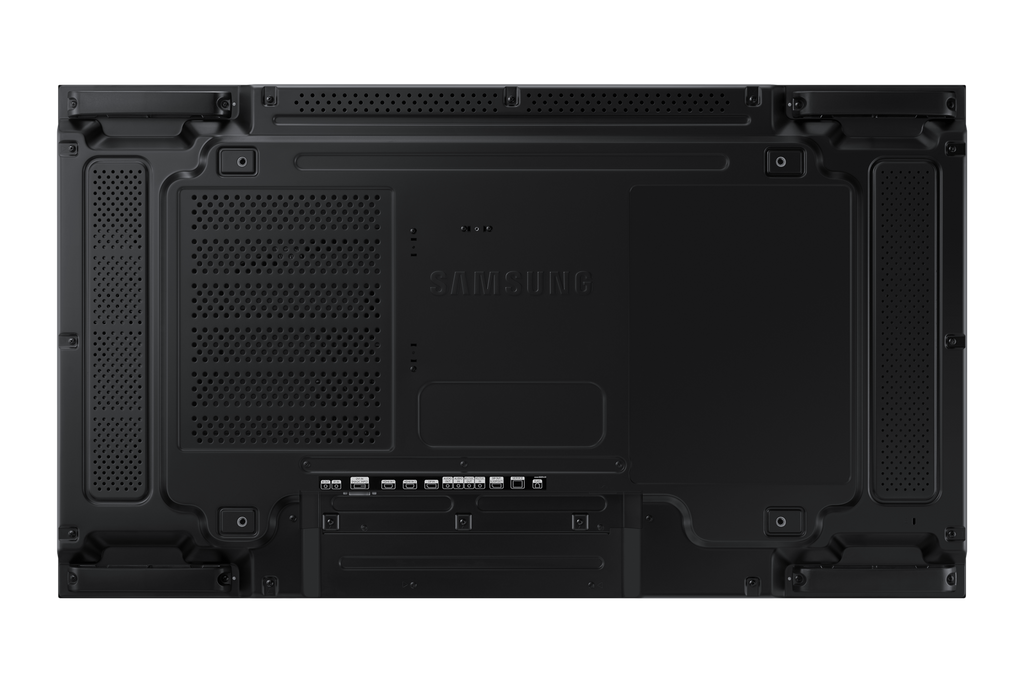

| Input | HDMI 2.0 (2), DisplayPort 1.2 (1), DVI-D (1), USB (1), Audio In (stereo mini jack), IR In; HDCP 2.2 |
| Output | DisplayPort 1.2 Loop-Out (1), Audio Out (stereo mini jack), IR Out |
| External Control | RS232C In / Out, RJ45 (10/100 Mbps) — Samsung MDC |
| Speakers | None (audio out only) |
| Physical & Power | |
|---|---|
| Dimensions (W×H×D) | 1,213.5 × 684.3 × 73.1 mm (47.8" × 26.9" × 2.9") |
| Weight | 21.2 kg (46.7 lb) set; 28.8 kg (63.5 lb) packaged |
| Package Dimensions | 1,398 × 844 × 257 mm (55.0" × 33.2" × 10.1") |
| VESA Mount | 600 × 400 mm, M8 screws × 4 (stand not included) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 220 W (on mode, max) / 0.5 W (sleep) |
| Operating Environment | 0–40 °C (32–104 °F), 10–80% humidity non-condensing |
| Certifications | FCC Part 15 Subpart B Class A, UL/cUL |
| Warranty | 3-year Samsung US limited warranty, parts and labor |
Need a Custom Video Wall Solution?
From 2×2 grids to expansive 5×5 walls, our team designs turnkey video wall solutions with professional mounting, cabling, and CMS integration. Volume pricing available.
Request Video Wall QuoteFrequently Asked Questions
What is the official MPN for the VM55B-U?
LH55VMBUBGBXGO is the US model code for the Samsung VM55B-U (VMB-U Series). The same display carries the suffix LH55VMBUBGBXEN in Europe. Confirm the MPN at quote stage so you receive the US-market unit.
Is the VM55B-U rated for 24/7 operation?
Yes — Samsung rates the VM55B-U for 24/7 continuous operation in commercial environments.
Can I mount the VM55B-U in portrait orientation?
Yes. The VM55B-U supports landscape and portrait installation on its 600 × 400 mm VESA interface (M8 screws). A stand is not included; video wall mounts are specified at quote stage.
How are multiple VM55B-U panels tiled into a video wall?
Each panel has a DisplayPort 1.2 loop-out, so a source can be daisy-chained from tile to tile with the included DP cable. Panels accept up to 3840 × 2160 @ 60 Hz input, and Samsung's free Color Expert Pro software calibrates white balance across the wall. Control is via Samsung MDC over RJ45 or RS232C.
Is the VM55B-U in stock, and how fast does it ship?
The VM55B-U ships from Samsung distribution, not from DisplayDetails stock. Orders ship within 5–7 business days of cleared payment or an approved purchase order to the contiguous US. Samsung backorders are quoted in writing before you commit.
What warranty and support does DisplayDetails provide?
Every Samsung VM55B-U purchased from DisplayDetails carries Samsung's 3-year US limited warranty for commercial LFD displays (parts and labor). As an Authorized Samsung Reseller we help with warranty claims and offer installation (scheduled at quote stage), volume pricing, and dedicated account management for commercial projects.
Related Commercial Displays
See every Samsung video wall display, including other VMB-U sizes →
Need window-facing displays? See the Samsung QHC Series at 700 nit →
For budget-friendly signage, the Samsung QBC Series delivers at 350 nit →
For the official Samsung product page, manuals and firmware, see the Samsung VMB-U Series 55" page (model LH55VMBUBGBXGO). Compare every Samsung model side by side on our Samsung commercial display spec table.
-
