Samsung VM46B-U — 46" Ultra-Narrow Bezel Video Wall Display (LH46VMBUBGBXGO)
Sale price
$1,750.00
Regular price
$1,838.00
Skip to product information
Samsung VM46B-U — 46" Ultra-Narrow Bezel Video Wall Display (LH46VMBUBGBXGO)
Sale price
$1,750.00
Regular price
$1,838.00

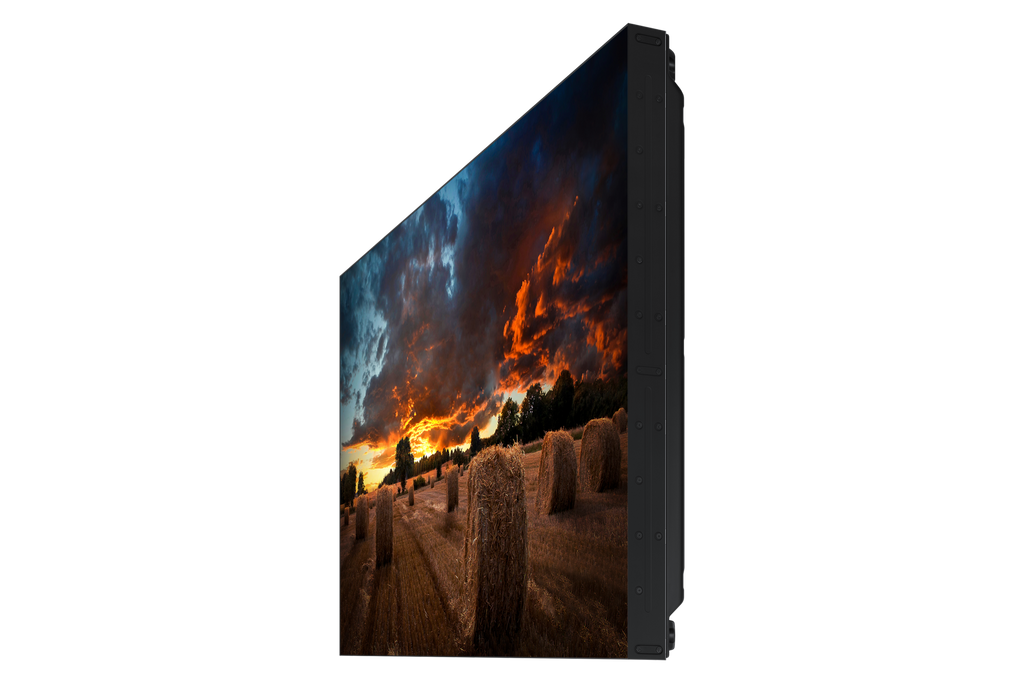

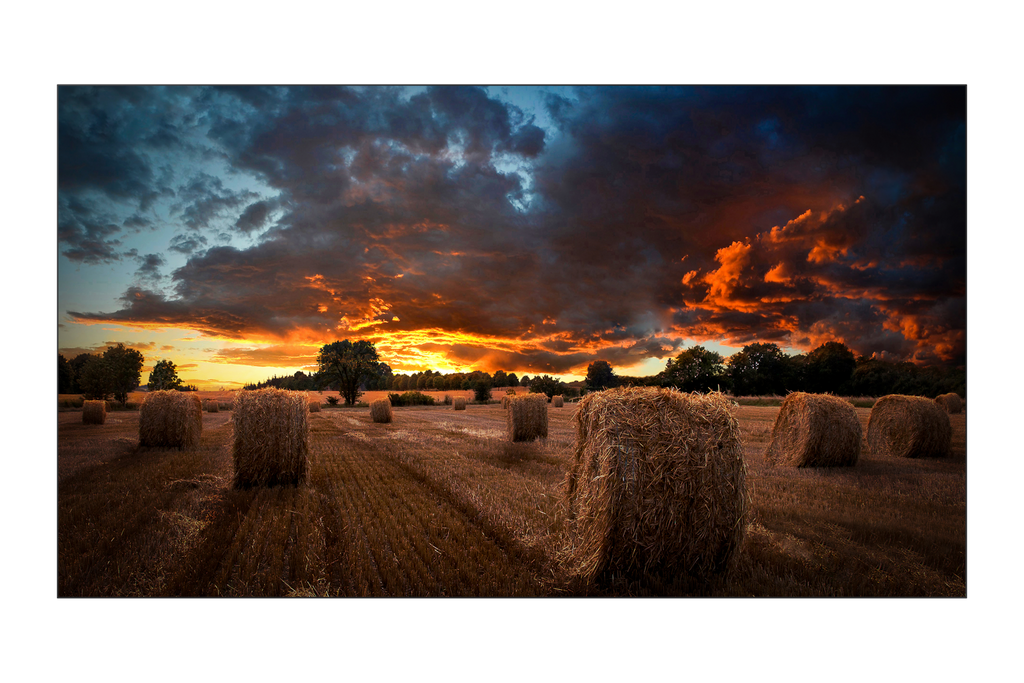

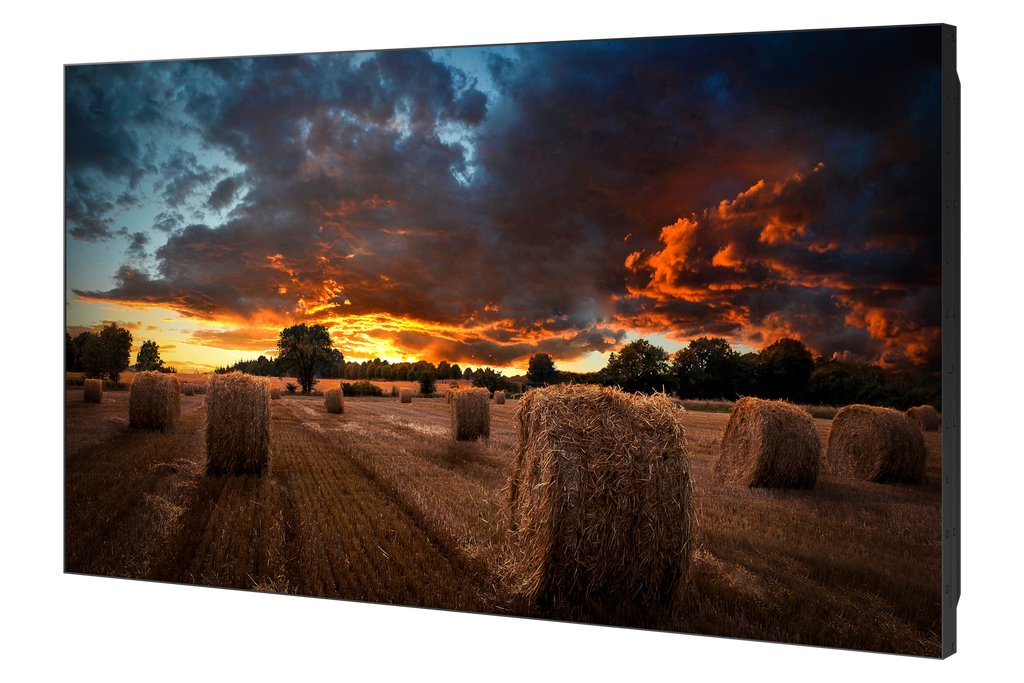

Samsung VM46B-U — 46" Ultra-Narrow Bezel Video Wall Display
The Samsung VM46B-U delivers stunning seamless visual experiences with an industry-leading 1.7mm bezel-to-bezel gap. Engineered for 24/7 continuous operation, this professional video wall panel is ideal for command centers, corporate lobbies, broadcast studios, and large-format retail installations where uninterrupted visual impact is essential.
DisplayDetails Exclusive:
Every display includes 6 months FREE cloud CMS software + 1 FREE media player per screen. Volume discounts available — request a quote.
Every display includes 6 months FREE cloud CMS software + 1 FREE media player per screen. Volume discounts available — request a quote.
Key Features
- Ultra-Narrow 1.7mm Bezel: Near-seamless imagery across multi-panel configurations
- 500 nit Brightness: Vivid visuals in any indoor lighting condition
- 24/7 Continuous Operation: Built for always-on environments with no burn-in risk
- Full HD 1080p Resolution: Crisp detail at 1920×1080 per panel
- Daisy Chain Support: Simplified cabling with DisplayPort 1.2 loop-through
- Anti-Glare Panel: Reduced reflections for comfortable viewing
- Built-in Calibration: Maintain color uniformity across the entire wall
Specifications
| Display | |
|---|---|
| Screen Size | 46" |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 500 nit |
| Contrast Ratio | 4000:1 (Typical) / 10,000:1 (Dynamic) |
| Bezel Width | 0.88mm (Even) / 0.88mm (Even) — 1.76mm B-to-B |
| Panel Technology | Direct-Lit LED / VA Panel |
| Viewing Angle | 178° / 178° |
| Response Time | 8ms (G to G) |
| Operation Hours | 24/7 |
| Orientation | Landscape / Portrait |
| Connectivity | |
|---|---|
| Input | HDMI 2.0 (2), DisplayPort 1.2 (1), DVI-D (1), USB 2.0 (1) |
| Output | DisplayPort 1.2 (1) |
| External Control | RS232C (In/Out), RJ45 (In/Out) |
| Physical | |
|---|---|
| Dimensions (W×H×D) | 40.3" × 22.8" × 3.6" |
| Weight | 26.5 lbs |
| VESA Mount | 600 × 400mm |
| Power Consumption | 115W (Typical) |
Need a Custom Video Wall Solution?
Our specialists design multi-panel configurations for command centers, lobbies, and broadcast environments. Volume pricing available for 5+ units.
Request Video Wall QuoteFrequently Asked Questions
Is the VM46B rated for 24/7 operation?
Yes — the Samsung VM46B is rated for 24/7 continuous operation, meaning it can run non-stop in demanding commercial environments without risk of panel damage or reduced lifespan.
Can I mount the VM46B in portrait orientation?
Yes! The Samsung VM46B supports both landscape and portrait mounting orientations with standard VESA mount compatibility. This makes it versatile for digital signage, wayfinding, and menu board installations.
Can multiple VM46B units be tiled into a video wall?
Absolutely — the Samsung VM46B is purpose-built for video wall configurations with ultra-narrow bezels that minimize the gap between panels. Combined with Samsung's video wall software, you can create seamless large-format displays from multiple units.
What warranty and support does DisplayDetails provide?
Every Samsung VM46B purchased from DisplayDetails includes the full manufacturer commercial warranty (typically 3 years). As a Samsung and LG commercial-display specialist, we handle warranty claims directly and offer expert installation support, volume pricing, and dedicated account management for commercial projects.
