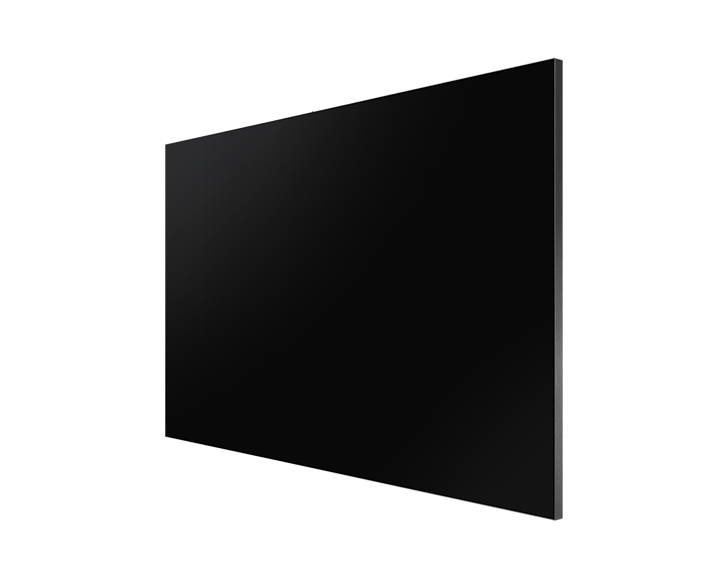

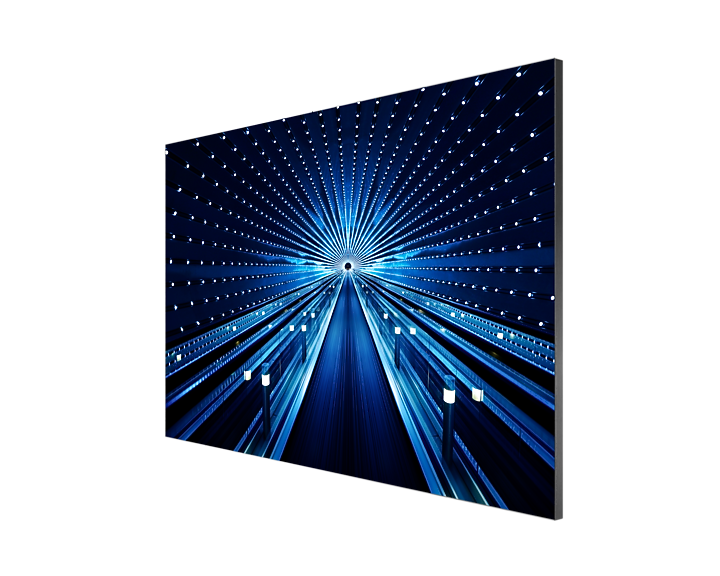

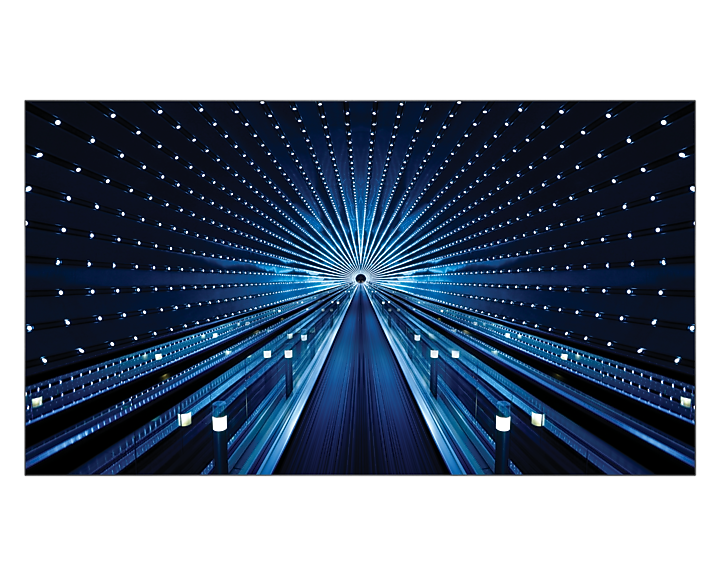

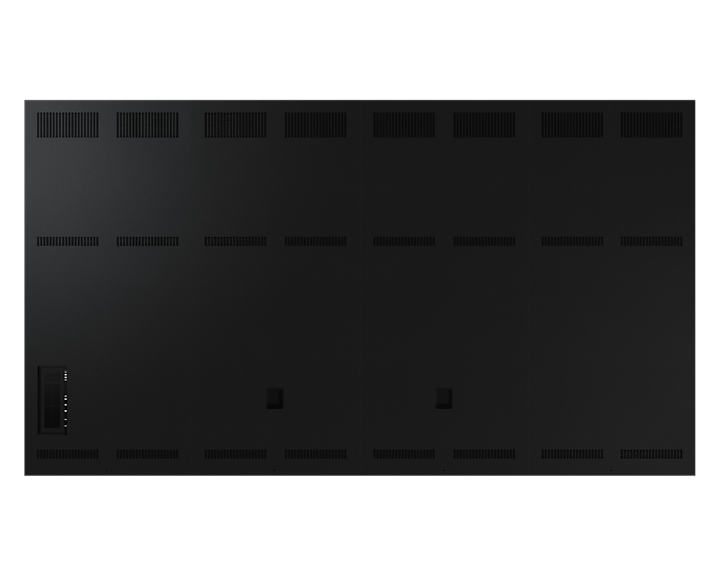

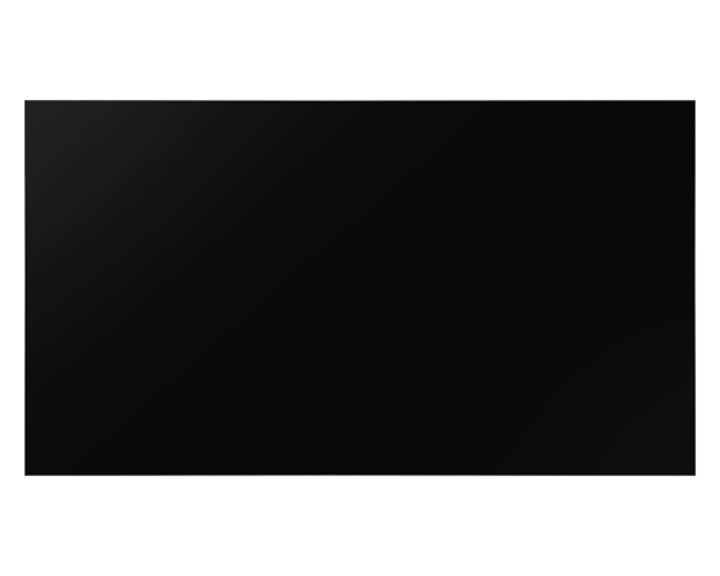

Samsung The Wall All-in-One 146" MicroLED Display (P1.6)
$72,450.00
Skip to product information
Samsung The Wall All-in-One 146" MicroLED Display (P1.6)
$72,450.00
The Samsung The Wall All-in-One 146" is a groundbreaking MicroLED display that delivers stunning visuals without the need for a separate LED controller or external video processor. Featuring Samsung's proprietary Flip-chip RGB MicroLED technology with a fine 1.6mm pixel pitch, this all-in-one direct-view LED solution produces lifelike images with exceptional color accuracy, 1,400-nit peak brightness, and an impressive 22,000:1 contrast ratio. Designed for premium corporate lobbies, boardrooms, broadcast studios, and luxury retail environments, The Wall offers a truly seamless, bezel-free canvas that transforms any space into an immersive visual experience.
Every purchase includes:
✅ FREE Shipping ✅ 3-Year Warranty ✅ 6 Months FREE Cloud Digital Signage CMS Software ✅ FREE Media Player
Key Features
- Flip-chip MicroLED Technology: Pure RGB MicroLED modules deliver unmatched color purity, deep blacks, and ultra-wide color gamut without color degradation over time.
- All-in-One Design: Integrated controller, power supply, and video processing eliminate the need for external equipment, simplifying installation and reducing total cost of ownership.
- 1,400 nit Peak Brightness: HDR-ready performance with AI-powered picture optimization ensures vivid, lifelike imagery even in brightly lit environments.
- 22,000:1 Contrast Ratio: Individual pixel-level dimming produces absolute blacks and brilliant highlights for stunning depth and realism.
- Seamless, Bezel-Free Canvas: 16 × 12 precision-aligned MicroLED modules create a perfectly uniform 146-inch display surface with no visible seams.
- 150,000-Hour LED Lifetime: Over 17 years of continuous operation at rated brightness, ensuring long-term reliability and minimal maintenance costs.
- Built-in Tizen 6.5 SoC: Samsung's MagicINFO platform enables native content playback, scheduling, and remote management without additional hardware.
- Versatile Connectivity: 3× HDMI 2.0, DisplayPort 1.2, and USB inputs support 4K content sources with a 3,840 Hz refresh rate for ultra-smooth motion.
Specifications
| Screen Size | 146" (diagonal) |
| Pixel Pitch | 1.6 mm (P1.6) |
| Native Resolution | 1920 × 1080 (FHD) |
| LED Type | Flip-chip RGB MicroLED |
| Brightness | 500 nit (default) / 1,400 nit (peak) |
| Contrast Ratio | 22,000:1 |
| Viewing Angle (H/V) | 170° / 155° |
| Color Depth | 16-bit (20-bit with FRC) |
| HDR Support | LED HDR, AI Picture, HDR10 / HDR10+ |
| Refresh Rate | 3,840 Hz |

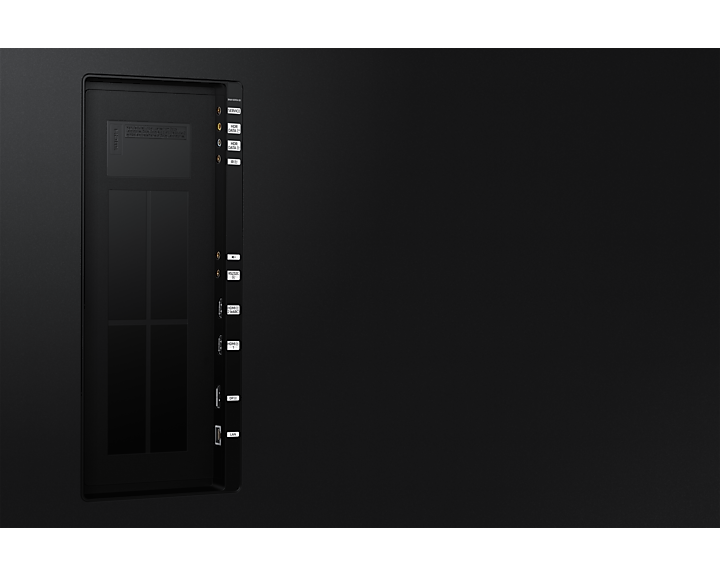

| Inputs | DisplayPort 1.2 ×1, HDMI 2.0 ×3, USB 2.0 ×2 |
| Audio | 10W (5W + 5W) built-in stereo speakers |
| SoC / Software | Tizen 6.5, MagicINFO Built-in |
| LED Lifetime | 150,000 hours |
| IP Rating | IP20 (front) |
| Module Configuration | 16 × 12 modules |
| Dimensions (W × H × D) | 127.1 × 71.6 × 1.9 in (3,228.4 × 1,818.4 × 49.9 mm) |
| Weight | 353.0 lbs (160.1 kg) |
| Operating Temperature | 32 °F – 104 °F (0 °C – 40 °C) |
| Power Consumption (Typ/Max) | 1,200W / 2,940W |
| Network | RJ45 (LAN), Wi-Fi 5, Bluetooth 4.2 |
| Accessories Included | Décor Frame, Frame Kit, Buffer Parts, IR Remote |
| SKU / Model | LH016IABMHS/GO |
| Warranty | 3-Year Warranty (included with purchase) |
Frequently Asked Questions
Is the The Wall All-in-One 146 rated for 24/7 operation?
The Samsung The Wall All-in-One 146 is rated for 16/7 operation (up to 16 hours per day), making it ideal for standard business-hours signage. For 24/7 needs, consider our QHC or UH5J series displays.
Can I mount the The Wall All-in-One 146 in portrait orientation?
Yes! The Samsung The Wall All-in-One 146 supports both landscape and portrait mounting orientations with standard VESA mount compatibility. This makes it versatile for digital signage, wayfinding, and menu board installations.
What makes MicroLED different from standard LED displays?
MicroLED technology uses microscopic self-emissive LEDs that produce their own light, eliminating the need for a backlight. This results in perfect blacks, infinite contrast ratio, exceptional color accuracy, and a seamless modular design with zero bezels between panels.
What warranty and support does DisplayDetails provide?
Every Samsung The Wall All-in-One 146 purchased from DisplayDetails includes the full manufacturer commercial warranty (typically 3 years). As a Samsung and LG commercial-display specialist, we handle warranty claims directly and offer expert installation support, volume pricing, and dedicated account management for commercial projects.
