LED Video Wall: The Complete Buyer's Guide (2026)

An LED video wall is the most visible technology decision a business makes — and the one buyers most often over- or under-spec. Whether you are lighting a corporate lobby, a broadcast set, a retail flagship, or a 24/7 control room, the gap between a wall that looks flawless and one that shows seams, moire, or a bright line down the middle comes down to a few specifications nobody explains plainly. As a Samsung & LG commercial display specialist, we quote, configure, and coordinate installation on these walls every week. This guide covers the three video wall types, pixel pitch and viewing distance, how to size a wall with real panel-and-bezel math, honest 2026 cost bands from our live catalog, controllers versus all-in-one units, the strongest use cases, and a buying checklist you can hand to a colleague.

The three kinds of LED video wall (and what buyers actually mean)

"LED video wall" gets used loosely, so let's separate the three technologies you will actually be quoted. Getting this vocabulary right stops you from comparing a $2,450 panel against a $160,000 canvas as if they were interchangeable.

• Tiled LCD video wall: Individual commercial LCD panels — like our Samsung VM55B-U 55" — built with ultra-narrow bezels so they line up into a grid. The screens are backlit LCD, not self-emissive LED, but the category is universally sold as a "video wall." This is what most people mean when they shop for video wall panels.
• Tiled dvLED (direct-view LED): Seamless cabinets of tiny surface-mounted LEDs assembled into a custom size. No bezels anywhere, brightness to spare, and any aspect ratio you want — but it needs an external LED processor plus professional calibration, and it is quoted per project rather than sold as a fixed SKU.
• MicroLED All-in-One: A pre-engineered, self-emissive canvas with the controller, power supply, and video processing built in. Samsung's The Wall All-in-One 146" is the reference example — it hangs like one large display and needs no external processor. You can see the wider family on Samsung's business display lineup.

Here is how the three compare on the factors that actually move your quote.

Pixel pitch and viewing distance: the spec that decides everything

On a direct-view or MicroLED wall, pixel pitch is the distance between the centers of two neighboring LEDs, measured in millimeters. A 0.84 mm pitch packs pixels twice as densely as 1.68 mm, which is exactly why our 4K The Wall 146" (0.84mm) stays razor-sharp at a reception desk while the 2K version is happier across a larger room. Smaller pitch means more LEDs, more processing, and a higher price — so you do not want to over-buy pitch for a wall people only ever see from 20 feet away.

Two rules of thumb get you in the right range before an engineer ever gets involved. The closest comfortable distance in meters is roughly equal to the pixel pitch in millimeters. Multiply that distance by about 3.4 and you reach the point where the human eye can no longer distinguish individual pixels at all — the "retina" distance. Use the table as a starting filter, not gospel; content, brightness, and contrast all shift it.

*Rules of thumb only — closest comfortable distance ≈ pixel pitch in mm expressed in meters; retina distance ≈ that figure multiplied by about 3.4. Tiled LCD panels have no pixel pitch in this sense; you size them by panel count and resolution instead.

How to size an LED video wall: panels, bezels, and the math

Size a tiled wall by resolution and footprint, in that order. Start with the content: a wall showing four camera feeds or a spreadsheet dashboard needs enough native pixels that text stays legible, while a single looping brand video is far more forgiving. Then confirm the physical dimensions fit the wall, with clearance for mounts and service access.

Worked example with our VM55B-U, a 55" Full-HD panel measuring 48.2" × 27.2" with a 1.76 mm bezel-to-bezel gap. A 2×2 array measures roughly 96.4" wide by 54.4" tall — about 8 ft by 4.5 ft — and resolves 3,840 × 2,160, a true 4K canvas assembled from four 1080p panels. Step up to a 3×3 and you get about 144.6" × 81.6" (12 ft × 6.8 ft) at 5,760 × 3,240. The only interruption is that 1.76 mm gap — roughly 1/16 inch — running between panels, which is why ultra-narrow-bezel screens matter so much for grids that display continuous imagery.

Three sizing mistakes we see repeatedly: forgetting that bezels stack (a 4×4 wall has three seams across, not one); mounting a spreadsheet or camera grid too far from viewers so text turns to mush; and choosing panel orientation last. Portrait versus landscape changes your mounts, your cabling runs, and your content templates, so decide it early. Every VM-series panel supports both and ships with standard VESA mounting (400 × 400 mm), which keeps bracket selection simple.

What an LED video wall costs in 2026

Here are real price points from our live catalog. Treat panel or unit pricing as the starting line, not the finish — a complete tiled wall also carries mounts, a processor or controller, cabling, content, and installation.

In practice, a 2×2 tiled LCD wall starts around $7,000–$9,800 in panels alone (four VM46B-U or VM55B-U screens), before mounts and the rest of the system. The MicroLED All-in-One units look expensive next to a stack of LCD panels, but remember what is bundled: the controller, power, processing, a media player, and calibration are already inside, and the price is for a finished 146" canvas rather than a parts list. Browse the tiled options in our Samsung Video Wall collection, or compare the full range in Samsung Commercial Displays.

Controllers and processors vs all-in-one

This is where tiled and all-in-one walls diverge hardest, and where budgets get blown by surprise. A tiled dvLED wall always needs an external LED processor to map one image across many cabinets, handle scaling, and drive brightness and calibration. Tiled LCD grids are gentler: panels like the VM55B-U daisy-chain over DisplayPort 1.2, so a modest wall can run without a dedicated processor, though a video wall controller earns its keep the moment you need multi-window layouts, multiple live sources, or picture-in-picture — the classic control-room requirement.

An All-in-One unit skips all of that. The Wall 146" carries an integrated controller, power supply, and processing, plus a built-in Tizen system-on-chip that runs Samsung MagicINFO for scheduling and playback — no external processor and no separate media server. Whatever you choose, pair the wall with cloud signage software so you can update content remotely; platforms like CrownTV let you schedule playlists, push emergency messages, and manage screens across sites from one dashboard. For a deeper walkthrough of layout planning and configuration, see our video wall setup guide.

Where video walls earn their keep

• Lobbies and corporate reception: Viewers stand close, so this is where finer pitch or 4K pays off. A single All-in-One canvas gives a clean, high-end look with no seams and a two-hour install; a premium tiled LCD grid is the budget-conscious alternative.
• Control rooms and NOCs: Tiled LCD grids rule here — 24/7-rated, source-dense, and driven by a controller that windows many feeds at once. The VM55B-U is built for exactly this always-on duty cycle.

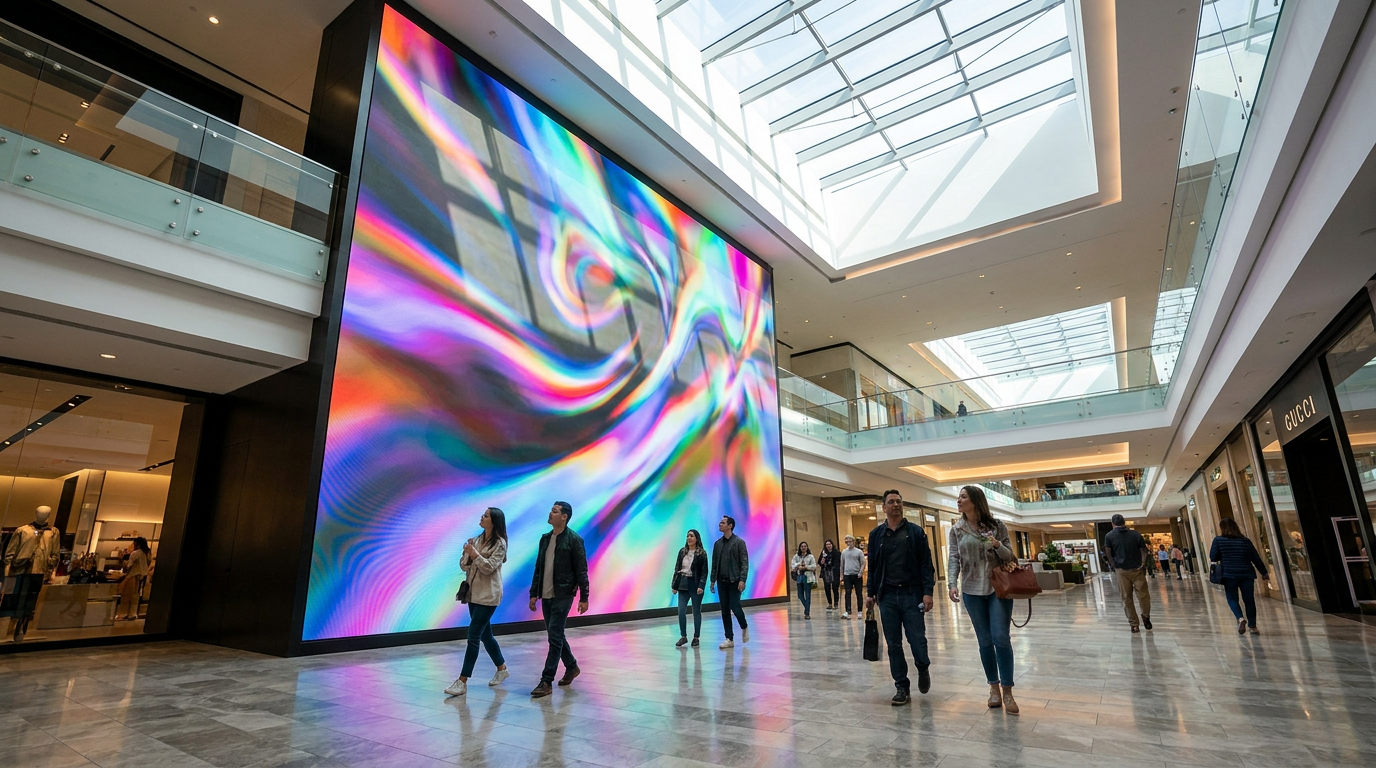

• Retail and flagship stores: Brightness and seamlessness sell. Use dvLED or MicroLED for a hero moment at the entrance, and tiled LCD for promo and menu walls deeper in the store. If you sell through glass, step up to high-brightness window displays instead.
• Broadcast and studio sets: On-camera backdrops need no bezels and a fast refresh rate. MicroLED and dvLED shine here — The Wall's 3,840 Hz refresh keeps the surface clean under studio cameras where lesser walls scan and flicker.

If your use case is a gallery, museum, or experiential space, we cover those environments in detail in our guide to LED video walls for galleries and museums, and the broader LED-versus-LCD trade-off in indoor LED vs LCD displays.

Your video wall buying checklist

• Fix the viewing distance first, then choose pixel pitch (LED) or panel size and count (LCD).
• Derive required resolution from your content — camera grids and dashboards need more native pixels than a single looping video.
• Confirm the physical footprint fits the wall, including mounts, cable routing, and service access from the front or rear.
• Budget the whole system, not just panels: screens + mounts + processor/controller + cabling + content + installation.
• Insist on 24/7-rated panels for any always-on wall so you avoid image retention and premature failure.
• Plan a color-calibration pass across tiled panels so brightness and white point match edge to edge.
• Decide portrait vs landscape early — it drives mounts, cabling, and content templates.
• Match a CMS and media player to how often, and from how many locations, you will update content.

Frequently Asked Questions

What is the difference between an LED video wall and a tiled LCD video wall?

A true LED video wall is self-emissive — each pixel is its own LED, as in dvLED cabinets or a MicroLED All-in-One like The Wall. A tiled LCD video wall uses backlit commercial LCD panels with ultra-narrow bezels lined up into a grid. Both are sold as "video walls," but LCD grids have thin visible seams (about 1.76 mm between panels on our VM-series) while self-emissive LED walls are seamless.

How much does an LED video wall cost?

Tiled LCD video wall panels in our catalog run $1,750 (VM46B-U 46") to $2,450 (VM55B-U 55") per screen, so a 2x2 grid starts around $7,000 to $9,800 in panels before mounts, controller, cabling, and installation. A complete MicroLED All-in-One 146" is $73,999 for the 2K version and $159,999 for the 4K version, with the controller, processing, and media player already included. Custom dvLED walls are quoted per project.

What pixel pitch do I need?

As a rule of thumb, the closest comfortable viewing distance in meters is roughly equal to the pixel pitch in millimeters, and the eye stops resolving individual pixels at about 3.4 times that distance. A 0.84 mm pitch suits reception desks and boardroom tables where viewers sit close; 1.68 mm to 2.5 mm suits larger rooms where the audience is farther back. Buying a finer pitch than your viewing distance requires only adds cost.

Do I need a video wall controller or processor?

A tiled dvLED wall always needs an external LED processor. Tiled LCD grids can daisy-chain over DisplayPort for simple single-image content, but a video wall controller is worth adding when you need multi-window layouts or several live sources at once. A MicroLED All-in-One unit has the controller and processing built in, so it needs no external processor.

Can I run one video wall across multiple locations?

Yes. Pair the wall with a cloud content management platform such as CrownTV to schedule playlists, push emergency messages, and manage screens across many sites from a single dashboard. Samsung's built-in MagicINFO handles on-device scheduling, and most commercial displays also work with major third-party cloud CMS platforms.

How large can a video wall get?

Tiled LCD walls scale in grids — a 2x2 of 55" panels is about 8 ft by 4.5 ft at 4K, and a 3x3 is about 12 ft by 6.8 ft at 5,760 by 3,240. dvLED and MicroLED walls scale by adding cabinets or modules and are limited mainly by structural support, power, and processing rather than a fixed maximum size.
