How to Mount a Window Display: 4 Proven Setups for Storefront Digital Signage

You've picked the display. Maybe it's a Samsung OM series for a sun-drenched storefront, or a QMC panel for a lobby-facing window. Now comes the part most businesses get wrong: the mount.

The wrong mounting setup doesn't just look bad. It blocks foot traffic, overheats your panel, makes maintenance a nightmare, or worse, puts a $3,000 display at risk of falling. And yet, most "guides" out there give you a product link and call it a day.

This guide is different. After installing thousands of commercial displays across retail stores, restaurants, corporate lobbies, and medical offices, we've broken down the four real-world mounting options for window-facing digital signage below — with honest pros and cons, the specific hardware considerations most people miss, and which Samsung commercial displays work best with each setup.

Before You Pick a Mount: Three Things to Figure Out First

Before comparing mount types, answer these three questions. They'll eliminate at least one or two options immediately and save you from buying hardware you'll return.

1. What does your wall and ceiling structure look like? Not every storefront has accessible ceiling joists or solid wall studs near the window. If you're in a strip mall with drop ceilings and metal stud framing, a ceiling pole mount needs additional backing. If the wall adjacent to your window is glass or thin partition, a wall-arm mount won't work without reinforcement. Take 10 minutes with a stud finder before you start shopping.

2. How bright is your window exposure? South- and west-facing windows get hammered with direct sunlight. If that's your situation, you need a high-brightness panel (2,500 nits minimum, ideally 3,000–4,000 nits) like the Samsung OM series, and your mount needs to allow at least a 2-inch gap between the display and the glass for heat dissipation. North- and east-facing windows are more forgiving — a standard commercial display in the 500-nit range with the QMC series can work fine.

3. Do you need to access the back of the display regularly? If your IT team needs to swap media players, check connections, or service the panel, a fixed mount buried against a window is going to frustrate everyone. Wall-arm and floor-standing mounts give you the best serviceability. Cable systems and ceiling poles are more "set and forget."

At-a-Glance Comparison: All Four Mount Types

Option 1: Wall-Arm Mount (Side Wall Mounted Display)

This is one of the most practical setups we install — a display mounted to the wall beside the window using an articulating or extending arm bracket, swung out so the screen faces outward through the glass.

How It Works

A heavy-duty articulating mount attaches to the wall studs (or a reinforced mounting plate on the wall) adjacent to your window. The arm extends outward, positioning the display in front of the window glass. Most articulating arms allow you to tilt, swivel, and rotate the panel, which means you can angle the screen toward foot traffic or pull it back flush against the wall when the store is closed.

When This Setup Makes Sense

Wall-arm mounts are ideal when your storefront window doesn't have usable ceiling structure above it, when you want the flexibility to reposition the display angle throughout the day, or when you need easy rear access for maintenance. Restaurants, salons, and small retail shops use this setup frequently because it keeps the floor completely clear and doesn't require any ceiling work. This is also the best option if you're renting the space and don't want to drill into the ceiling or run ceiling-mounted infrastructure that you'll have to remove when your lease ends.

Hardware Considerations

Weight capacity matters more than you think. A Samsung QM55C weighs about 30 lbs without the stand. That sounds light, but an articulating arm at full extension creates significant leverage on the wall anchor point. You need a mount rated for at least 1.5x your display's weight, and it absolutely must go into structural studs or a backing plate — never drywall anchors alone.

VESA compatibility: Make sure your mount matches the VESA pattern on the back of your display. The Samsung QMC series uses a 200x200mm VESA pattern on the 55-inch models. The OM series varies by size, so always check the spec sheet.

Cable management is your biggest visual challenge. With a wall-arm mount, the power cable and any HDMI or network cables need to run along the arm and then down the wall to an outlet. Use cable raceways or run the cables inside the wall if possible. Nothing kills a professional window display faster than dangling cables visible from outside.

Recommended Displays

For standard indoor-facing windows (north/east exposure, no direct sunlight): the Samsung QM55C or Samsung QM75C deliver excellent image quality at 500 nits with 4K resolution and 24/7 rated operation. For sun-exposed windows: step up to the Samsung OM55B or OM75A from the OM series collection, which push 3,000–4,000 nits and are specifically engineered for window-facing installations.

Pros: Floor stays clear. Display angle adjustable on demand. Easy rear access for servicing. No ceiling work required. Cheapest mounting option ($50–$200 hardware).

Cons: Requires solid wall with studs adjacent to window. Bracket hardware visible from inside the store. Bumping a fully extended arm is a real risk in tight spaces.

Option 2: Cable-Suspended Display System

Cable-suspended systems use thin steel cables or rods running from the ceiling to the floor (or ceiling to a tension base) to hold the display in the window without any wall attachment. This is the cleanest, most minimal-looking option — and it's the setup you see in high-end real estate offices, luxury retail, and design-forward storefronts.

Look at how this real estate office uses the setup. The display hangs in portrait orientation on thin cables, flanked by traditional listing frames. From the sidewalk, the screen appears to float in the window. The cables are barely visible, the floor is completely clear, and the portrait orientation is perfect for the kind of full-screen lifestyle imagery and property videos that grab attention from passersby.

Herman Miller's storefront takes this even further. The cable-suspended display floats in portrait mode against a dramatic red-lit interior. The thin cables are nearly invisible from outside — the screen becomes part of the window design rather than something bolted to a wall.

How It Works

Two or four stainless steel cables or rods are anchored to the ceiling and tensioned to the floor using base plates or floor anchors. The display mounts to the cables using clamps or custom brackets at whatever height you choose. Some systems support multiple displays stacked vertically on the same cable set — you'll see this a lot in real estate offices showing portrait-oriented listing screens.

When This Setup Makes Sense

Cable systems are the right choice when aesthetics are the top priority, when you want the display to appear to "float" in the window, or when you need to mount multiple screens in a vertical column. They also work well when the wall on either side of the window isn't available (like a floor-to-ceiling glass storefront) and when you don't want to commit to a single fixed height.

Hardware Considerations

Ceiling anchor points need to hit structure. The cables carry the full weight of the display, so your ceiling anchors must go into joists, concrete, or steel — not into drop ceiling tiles. If you have a suspended ceiling, you'll need to run threaded rod or unistrut above the tiles to reach the actual structural deck.

Vibration and sway. Cable systems are inherently less rigid than wall mounts or poles. In spaces with heavy foot traffic, HVAC drafts, or doors that slam, the display can sway slightly. Higher-tension rod systems (as opposed to cable) reduce this significantly. For displays 55 inches and larger, rod systems are the better choice.

Portrait vs. landscape orientation. Cable systems are one of the few mounting options that make portrait orientation genuinely easy. If your content strategy calls for vertical video, menu boards, or real estate listings, this is a major advantage. Most of the cable-mounted installations we see in the field run portrait orientation because it commands more vertical window space and reads better from the sidewalk.

Display thickness matters. Cable clamps grip the edges of the display, so ultra-thin panels with minimal bezels work best. The Samsung QMC series, at just 28.5mm deep, is ideal for cable-mount installations because the clamps sit nearly flush.

Recommended Displays

For multi-display portrait configurations: the Samsung QM55C in portrait orientation. Its slim 28.5mm depth and narrow bezels make it perfect for cable-mounted column setups. For single large-format landscape: the Samsung QM75C commands attention in a window and its 4K resolution holds up even when passersby are close to the glass. For high-brightness sun-facing windows: the Samsung OM55B.

Pros: Cleanest exterior look — display appears to float. Supports portrait or landscape. Height adjustable without re-drilling. Holds multiple stacked displays. Doesn't touch walls — great for renters in glass storefronts.

Cons: Most expensive option ($300–$800 hardware). Requires solid ceiling structure. Display can sway in drafty environments. Power and data cable routing is trickier.

Option 3: Ceiling-Mounted Pole (Drop Pole)

A ceiling pole mount uses a single vertical pole (or tube) that anchors to the ceiling and extends downward, with the display attached at the bottom via a VESA bracket. Think of it like an upside-down floor lamp holding a TV. This is an extremely common setup in restaurants, sports bars, and QSR (quick-service restaurant) environments — and it works just as well for storefront windows.

This rear-view shot shows the VESA bracket connecting the display to the drop pole, with the pole anchored to the ceiling above the window frame. Notice the cables running along the wall — routing them through the hollow pole instead creates a much cleaner install (more on that in the back-cover section below).

How It Works

A mounting plate bolts to the ceiling joists or structural deck. A telescoping pole (usually 1.5 to 5 feet in length, adjustable) threads into the plate and drops down to the desired height. At the bottom of the pole, a VESA-compatible bracket holds the display. Most pole mounts allow tilt and rotation at the bracket point, so you can angle the screen toward the window.

When This Setup Makes Sense

Ceiling pole mounts are the go-to when you need the display centered in a wide window (where neither side wall is close enough for a wall-arm mount), when you want the display high enough to clear foot traffic or furniture below, or when you're in a space with strong ceiling structure but limited wall options. They're also popular in spaces where the display needs to be visible from multiple angles — the rotation capability lets you swing the screen for different viewing zones throughout the day.

Hardware Considerations

Ceiling structure is everything. A pole mount concentrates all the load on a single point in the ceiling, unlike cable systems that distribute weight across multiple anchors. You need direct attachment to a joist, beam, or concrete deck. For a 55-inch commercial display (30–40 lbs) on a 3-foot pole, the mounting plate should be rated for at least 75 lbs to account for dynamic load.

Pole length and wobble. The longer the pole, the more the display will wobble when bumped or in drafty conditions. Keep the pole as short as possible while still achieving your desired display height. Poles over 4 feet long should use a thicker diameter tube (1.5 inches or more) to reduce flex.

Cable routing is elegant with poles. Unlike wall-arms and cable systems, a pole mount gives you a natural channel to hide cables — run them inside the hollow pole. Most quality pole mounts are designed for this. A single hole in the ceiling lets you route power and data up through the pole and into the ceiling cavity where they connect to your infrastructure.

Tilt angle for window displays. If the display is mounted higher than eye level (which it usually is with a ceiling pole), you'll want a bracket that allows 15–20 degrees of downward tilt. This ensures passersby looking up at the window can still read the content clearly.

Recommended Displays

For restaurants and QSR window displays: the Samsung QM55C gives you the 4K clarity and 24/7 durability that menu board and promotional content demands. For larger storefront windows: the Samsung QM75C on a short pole makes a serious impact. At 75 inches, it's visible from across a parking lot. For direct-sunlight windows: the Samsung OM75A from the OM series.

Pros: Centers display perfectly in wide windows. Clean cable routing through hollow pole. Floor stays clear. Rotation supports multiple viewing angles. Single ceiling anchor — straightforward install.

Cons: Committed to one fixed position. Ceiling access required — drop ceilings need backing work. Pole visible from inside. Servicing the media player needs a ladder.

Option 4: Floor-Standing Mount (Freestanding Base)

A floor-standing mount uses a weighted base sitting on the floor with a vertical column or stand that holds the display at window height. No drilling into walls or ceilings required — you literally set it in place and plug it in.

This hotel entrance setup is a textbook floor-standing installation. The display sits on a heavy weighted base just inside the glass, running a landscape promotion for the hotel's restaurant. No ceiling work, no wall drilling — they positioned it, plugged it in, and it was live. From the sidewalk, the display is clearly visible through the glass, the content reads well from the street, and the setup communicates a modern, polished lobby environment.

How It Works

A heavy steel base (typically 30–60 lbs for stability) sits on the floor behind the window. A vertical column rises from the base to your desired display height, and a VESA bracket at the top holds the panel. Some models include locking casters so you can reposition the display easily. Higher-end freestanding mounts include internal cable management channels and built-in shelves for media players.

When This Setup Makes Sense

Floor-standing mounts are the right choice when you physically cannot drill into the ceiling or walls — either because you're in a leased space with strict modification rules, because the building structure doesn't support overhead mounting, or because you need a portable setup that can be moved between window locations. Pop-up retail, trade shows, and seasonal window displays are classic use cases.

Hardware Considerations

Base weight vs. display size. The base needs to be heavy enough to prevent the entire unit from tipping. For a 55-inch display, look for a base that weighs at least 35 lbs. For a 75-inch display, 50 lbs minimum. If the stand uses casters, make sure they have locking mechanisms.

Height adjustability. Most floor stands allow you to set the display height between about 3 and 5 feet from the floor. For window displays, you'll typically want the center of the screen at roughly 4.5–5 feet — this puts the content at eye level for pedestrians walking past.

Footprint and depth. Floor stands take up space behind the window. A typical stand base is 24–30 inches deep. Measure the space between your window and whatever's behind it to make sure the stand fits without blocking the interior flow.

Anti-tip provisions. If you're in a location with children, public access, or seismic considerations, use a floor stand with an anti-tip strap or wall tether.

Recommended Displays

For portable and seasonal window displays: the Samsung QM55C is light enough at 30 lbs that repositioning it on a wheeled stand is a one-person job. For permanent floor-standing window installations: the Samsung QM75C on a heavy-duty weighted stand. The larger screen size compensates for the slightly further setback from the window glass. For sun-exposed glass: the Samsung OM55B.

Pros: Zero installation required — no drilling, no ceiling work. Reposition or remove anytime. Lowest-commitment option. Ideal for renters, pop-ups, seasonal.

Cons: Largest physical footprint (~2.5 sq ft). Base visible from outside — less clean than floating cable or pole. Display sits further from glass, reducing visibility at night when glass becomes reflective.

Step-by-Step: How to Install a Window Display Mount

Here's the install workflow we follow on every job, condensed into 10 steps. This applies to wall-arm and ceiling pole mounts; cable and floor-standing setups follow a similar logic with mount-specific variations.

Tools and Supplies You'll Need

The Back Cover: Why Hiding the Rear of Your Display Matters

Here's something almost no one talks about until after the install: what does the back of your window display look like from inside the store?

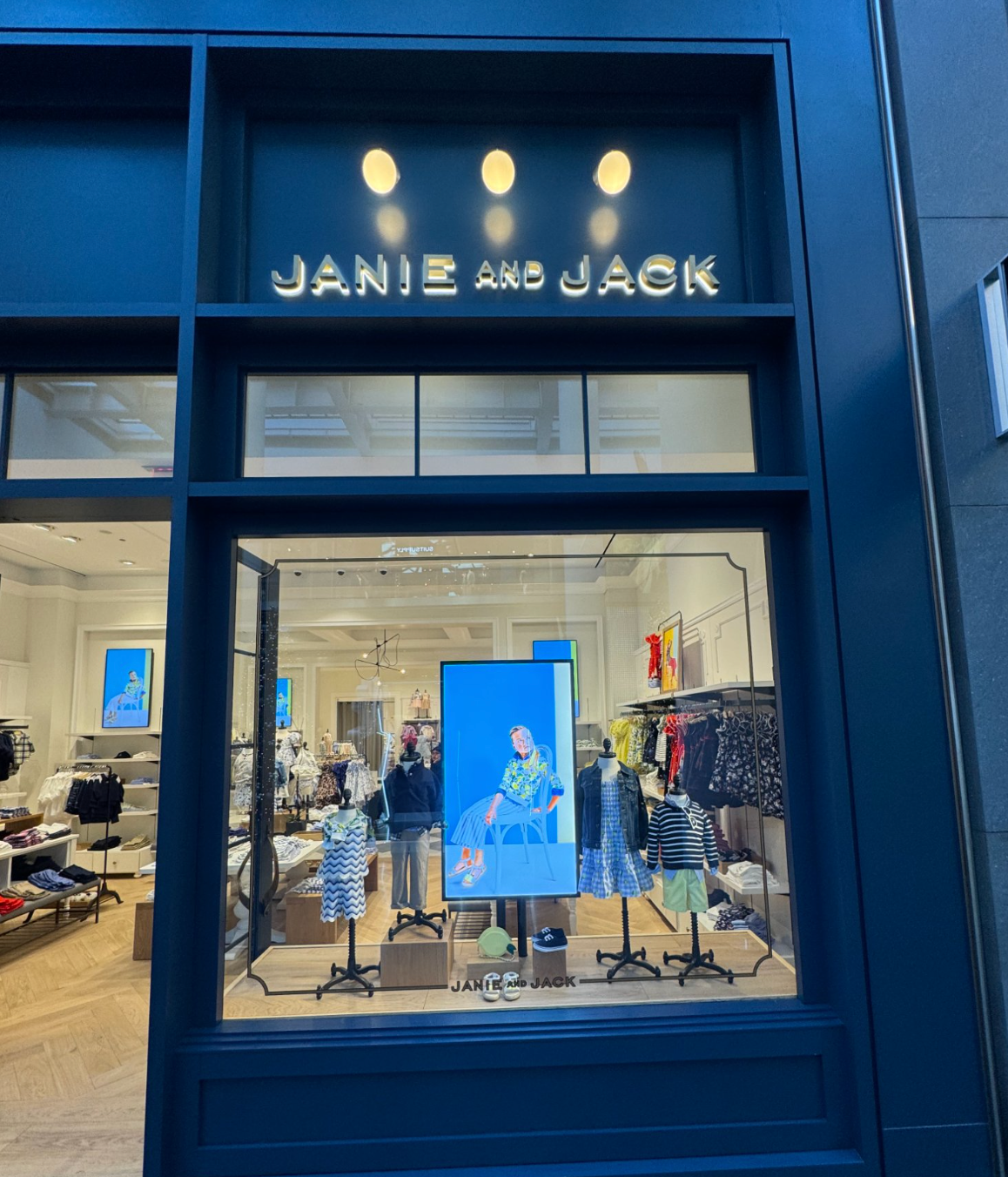

From the outside, this retail window display looks great — clean portrait display, beautiful content, well-positioned in the window.

But from inside the store, customers and staff are looking at exposed cables, a raw VESA bracket, the back panel of the display with its vents and labels, and a media player dangling from the HDMI port. It's the equivalent of a beautifully framed painting with the hanging wire showing on the front.

This is even more common with cable-suspended installations. The cables themselves look clean, but the power cord, HDMI cable, and any media player hardware are all visible from inside the store.

What a Back Cover Does

A display back cover (sometimes called a display shroud or enclosure back panel) is a simple cover that attaches over the rear of the display to hide all the cable connections, the VESA bracket hardware, the media player, and any other infrastructure. It gives the back of the installation a clean, finished look that matches the front.

Good back covers do three things. They conceal all cables and hardware so the back of the display looks intentional rather than improvised. They protect the connections from accidental disconnection — anyone walking behind the display could snag a loose cable and kill the display feed. And they provide a space to house the media player and any other accessories securely.

When You Need One

If the back of your window display is visible to anyone — customers, staff, or passersby looking in at an angle — you need a back cover. This applies to virtually every window-facing installation except cases where the display is recessed into a wall niche or separated from the interior by a partition.

What to Look For

The best back covers are powder-coated steel or aluminum, color-matched to the display bezel (usually black). They should have ventilation cutouts so the display's rear vents aren't blocked. They should include cable pass-throughs for clean cable routing. And they should be removable without tools for maintenance access, either via magnetic closures or thumb-screw latches. Some mount manufacturers include back covers as part of their system — Peerless-AV's SmartMount series, for example, offers optional shrouds. If your mount doesn't include one, aftermarket back covers are available in standard VESA sizes, or you can have one custom fabricated by a local sheet metal shop for $50–$150.

Common Mistakes to Avoid

Not leaving an air gap behind the display. This is the number one mistake we see. Commercial displays generate significant heat, and window-facing installations amplify that with solar heat gain through the glass. Leave a minimum 2-inch gap between the back of the display and the window glass. For high-brightness OM series panels, 3–4 inches is better.

Ignoring local signage ordinances. Many municipalities regulate digital signage — restricting screen size, motion content, operating hours, and nighttime brightness levels. Before you mount anything, check with your local planning office.

Running power from an extension cord. Window display installations need a dedicated outlet near the mount point. Running an extension cord across the floor is a code violation in most jurisdictions and a genuine safety hazard. Budget for an electrician to add an outlet if needed.

Choosing a mount rated too close to your display's weight. If your display weighs 30 lbs, don't buy a mount rated for 33 lbs. Go 1.5x to 2x over your display weight for a comfortable safety margin.

Forgetting about content management access. Your display needs to connect to a media player or content management system somehow. Before finalizing your mount choice, plan how you'll get an HDMI cable, network cable, or USB drive to the back of the display once it's mounted.

Skipping the back cover. The front of your display faces your customers outside. The back faces your customers inside. Both sides need to look professional.

What About the Display Itself?

The mount is half the equation. The other half is choosing a commercial display that's built for window-facing operation. Residential TVs will fail in a window environment — they're not bright enough, not rated for 24/7 operation, and their warranties void the moment you use them commercially.

For standard indoor windows (low direct sunlight): The Samsung QMC series (QM55C, QM75C) delivers 500-nit brightness, 4K resolution, and 24/7 reliability in a slim 28.5mm package. These are the workhorses for lobby windows, north-facing storefronts, and interior-facing displays.

For high-brightness window-facing applications: The Samsung OM series — OM55B and OM75A — pushes 3,000–4,000 nits with anti-reflective treatment, purpose-built for south- and west-facing windows where sunlight washes out standard displays.
